Rockfall Barrier

Specifications

Dimensions: 2X30

Material: q195

Tensile Strength: 1770

GET QUOTE

Advanced High-Tensile Ring Net Rockfall Barrier Solution

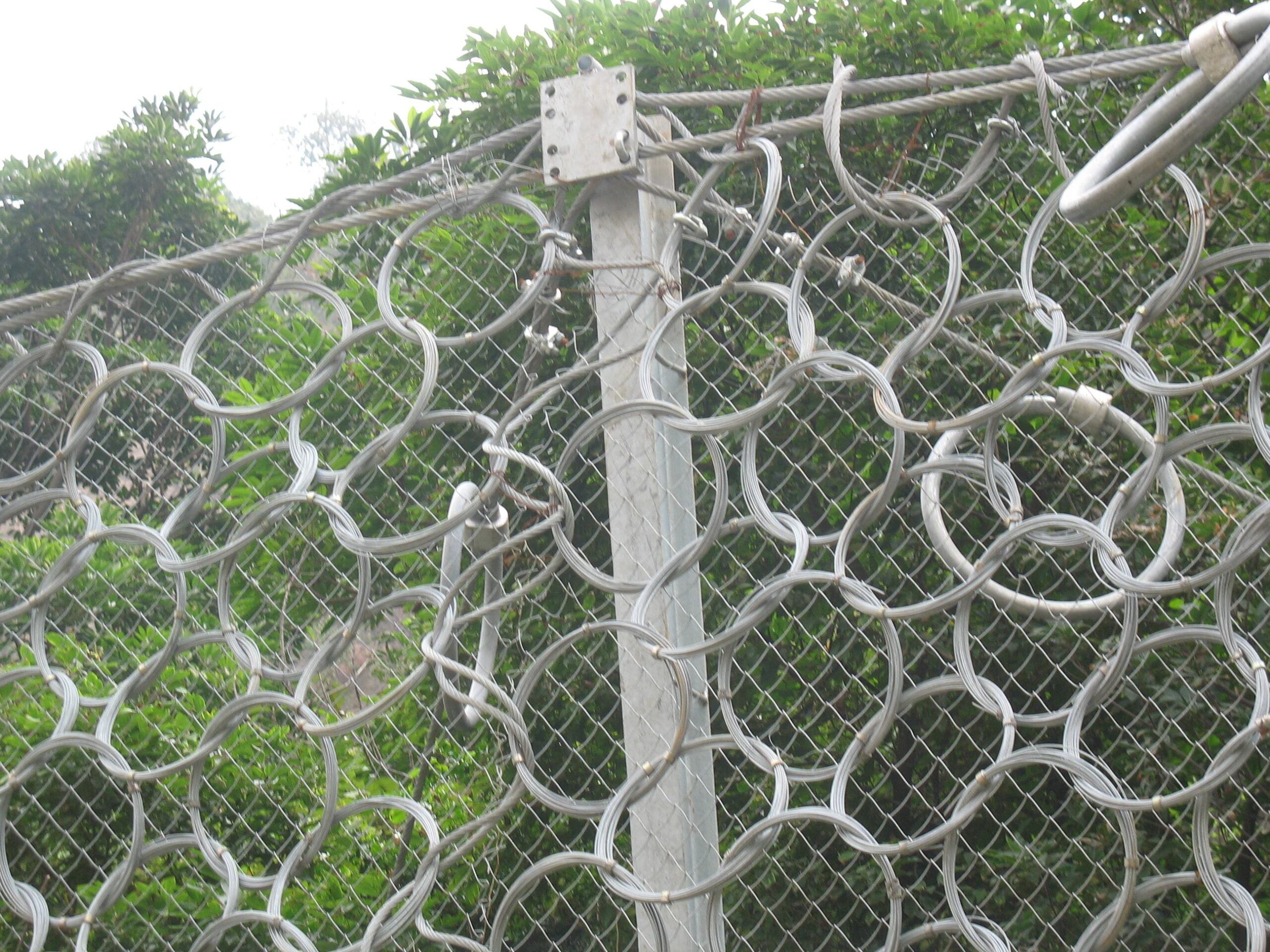

Our Professional Ring Net Rockfall Barrier System represents cutting-edge slope protection technology, engineered with premium high-tensile strength steel rings to deliver superior performance against rockfall and landslide hazards. This advanced barrier system utilizes precision-manufactured steel rings with exceptional 1770 MPa tensile strength, providing unmatched protection for critical infrastructure and personnel safety.Designed specifically for demanding geological conditions, our ring net barriers offer enhanced energy absorption capabilities compared to traditional wire mesh systems. While conventional steel wire netting systems protect against rockfall velocities up to 25m/s, our innovative ring net technology provides comprehensive protection against high-velocity rockfall events up to 30m/s, making it the superior choice for high-risk applications.Each system features meticulously engineered steel ring construction with optimized overlap connections exceeding 100mm at both ends, ensuring maximum tensile strength, structural rigidity, and long-term reliability in the most challenging environmental conditions.

Comprehensive Technical Specifications & System Parameters

Ring Net Barrier System Technical Specifications
Ring Material	Premium high-tensile strength steel wire (3mm diameter)
Tensile Strength Rating	≥1770 MPa (guaranteed minimum performance)
Steel Ring Diameters	300mm, 350mm, 400mm (optimized for various applications)
Panel Dimensions	5m × 3m, 5m × 4m, 5m × 5m, 5m × 6m, 5m × 7m
System Height Range	2m – 7m (customizable to project requirements)
Post Spacing Distance	10m standard (optimized structural configuration)
Overlap Connection Length	≥100mm at both ends (enhanced structural integrity)
Maximum Rockfall Velocity Protection	Up to 30m/s (superior to conventional wire mesh systems)
Surface Treatment	Hot-dip galvanized coating (superior corrosion resistance)
Operating Temperature	-40°C to +80°C (all-weather performance capability)
Expected Service Life	30-50 years (depending on environmental conditions)

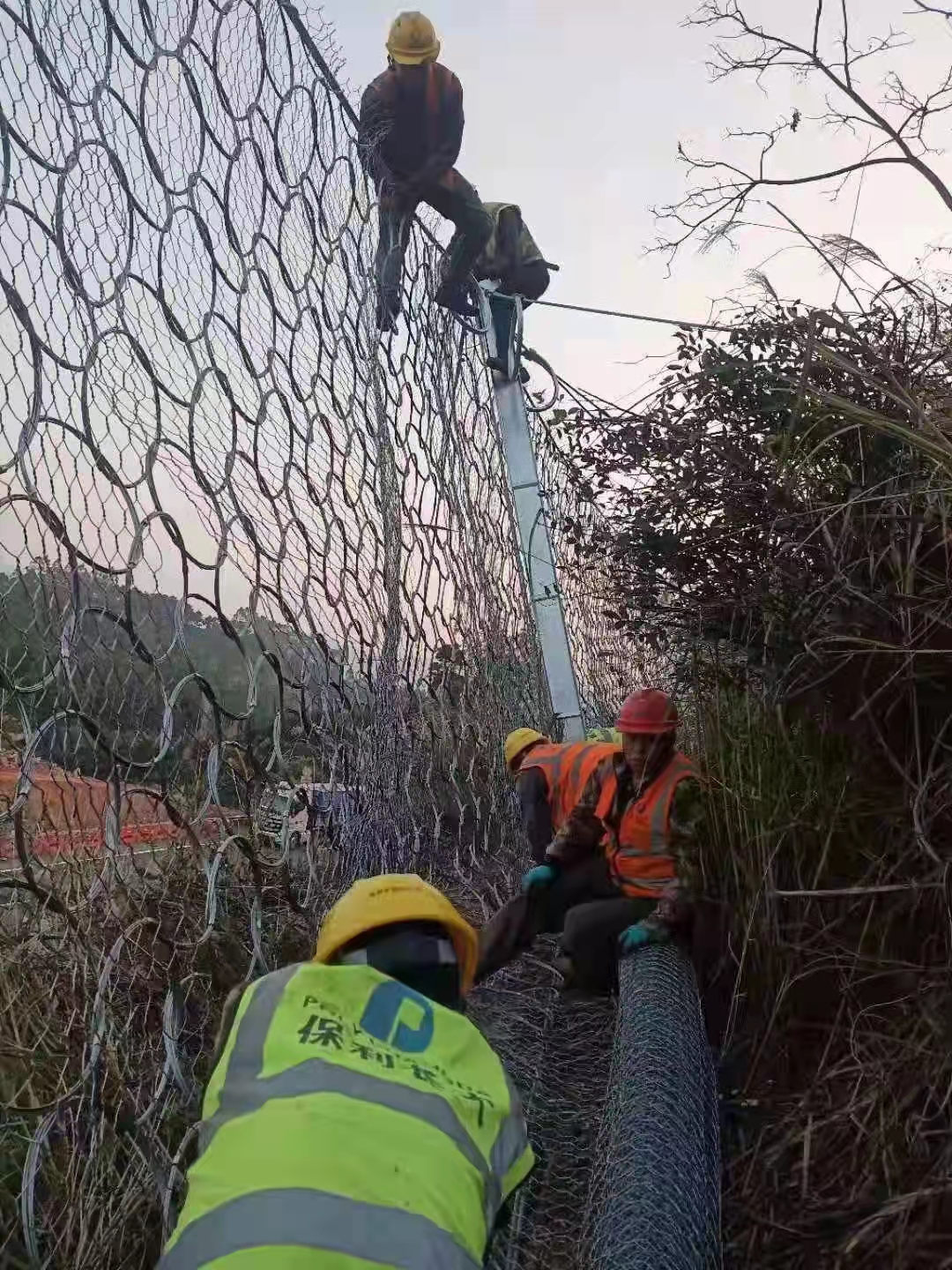

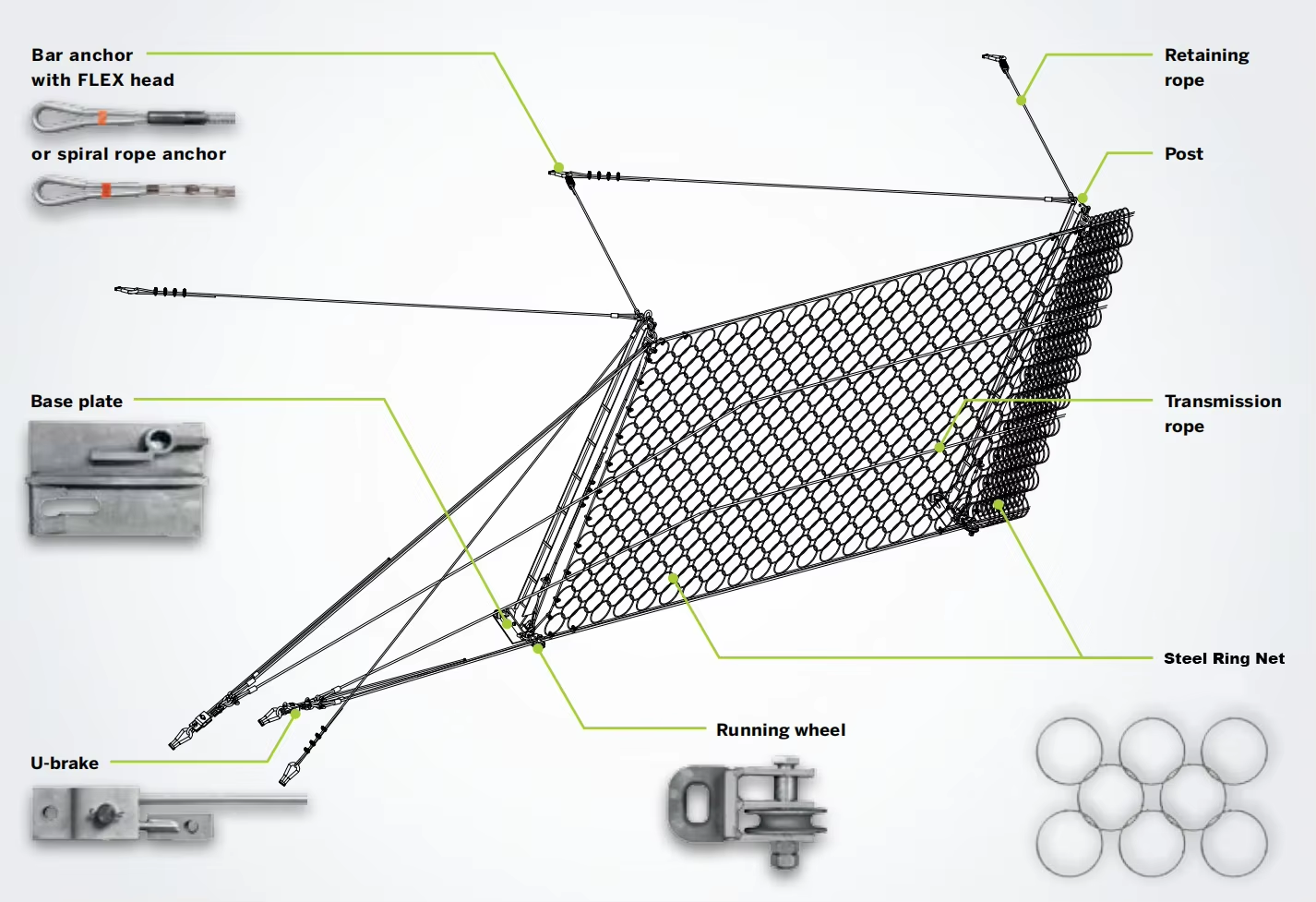

Installation Method	Steel posts, tensioning cables, anchor foundation systems

Available Product Series & Model Specifications

RX Series – Standard Ring Net Barriers

Model Code	Energy Rating	Height Range	Post Spacing
RX-025	25 kJ	2-7m	10m
RX-050	50 kJ	2-7m	10m
RX-075	75 kJ	2-7m	10m

RXI Series – Enhanced Performance Ring Net Barriers

Model Code	Energy Rating	Height Range	Post Spacing
RXI-025	25 kJ	2-7m	10m
RXI-050	50 kJ	2-7m	10m
RXI-075	75 kJ	2-7m	10m
RXI-150	150 kJ	2-7m	10m
RXI-200	200 kJ	2-7m	10m

Strategic Applications & Industry Implementation

High-Velocity Rockfall Protection: Superior protection against high-speed rockfall events up to 30m/s velocity
Highway & Transportation Corridors: Critical infrastructure protection for roads, railways, and transit systems
Landslide Mitigation Systems: Comprehensive slope stabilization and debris containment solutions
Mining & Quarry Safety: Enhanced protection for open-pit operations and quarry safety zones
Residential Area Protection: Safeguarding communities located near unstable slopes and cliff faces
Industrial Facility Security: Protection for power plants, manufacturing facilities, and critical infrastructure
Emergency Response Solutions: Rapid deployment systems for post-disaster slope stabilization
Coastal Cliff Stabilization: Marine infrastructure protection and coastal erosion prevention

Superior Performance Advantages & Technical Benefits

Enhanced Velocity Protection

Advanced ring net technology provides superior protection against rockfall velocities up to 30m/s, significantly outperforming traditional wire mesh systems limited to 25m/s.

Superior Structural Integrity

Precision-engineered steel ring construction with 100mm+ overlap connections ensures maximum tensile strength, rigidity, and long-term structural reliability.

High Energy Absorption Capacity

Optimized ring geometry and high-tensile steel construction provide exceptional energy dissipation capabilities for high-impact protection scenarios.

Flexible Installation Options

Versatile system design accommodates various terrain conditions and installation requirements with customizable height and spacing configurations.

Performance Comparison: Ring Net vs. Traditional Wire Mesh

Performance Parameter	Traditional Wire Mesh	Ring Net System	Advantage
Maximum Rockfall Velocity Protection	Up to 25 m/s	Up to 30 m/s	+20% Higher
Energy Absorption Efficiency	Standard	Enhanced	Superior Performance
Structural Flexibility	Limited	High Adaptability	Better Terrain Adaptation
Connection Reliability	Standard Overlap	100mm+ Reinforced Overlap	Enhanced Integrity

Quality Assurance & International Standards Compliance

Our Ring Net Rockfall Barrier Systems are manufactured under stringent quality control protocols and comply with international safety standards:

ISO 9001:2015 – International Quality Management Systems
EN 14490:2010 – Rockfall Protection Kits Specifications
ETAG 027 – European Technical Approval Guidelines for Rockfall Protection
UNI 11211-4:2018 – Rockfall Protection Works Classification Standards
CE Marking – European Conformity Safety Certification
ASTM Standards – American Society for Testing and Materials Compliance

Comprehensive Engineering Support & Services

Our certified engineering team provides complete technical assistance including:

Advanced site-specific design calculations and risk assessment analysis
Professional geological survey and installation site evaluation
Custom CAD drawings, technical specifications, and project documentation
Comprehensive installation training programs and on-site technical supervision
Long-term system monitoring and preventive maintenance protocols
24/7 emergency technical support and rapid response consultation
Performance optimization and system upgrade recommendations

Global Ordering Information & Supply Chain Solutions

Service Category	Specifications & Terms
Minimum Order Quantity	300 m² (flexible terms for large infrastructure projects)
Production & Delivery Timeline	20-35 days after order confirmation (expedited delivery available)
Professional Packaging Standards	Weather-resistant wrapping, reinforced steel pallets, export-grade protection
Payment Terms	T/T, L/C, Western Union, flexible international payment options
Global Distribution Network	Worldwide shipping capabilities, FOB/CIF/DDP terms available
Warranty & Support	15-year material warranty, lifetime technical consultation services
Customization Services	Project-specific design modifications and engineering solutions

“`
