Our advanced technology Hitech Gabion will come up with an excellent option of durable Reno mattresses that are designed to offer better erosion protection and also increase the stability of the uneven land surfaces. Find out how our Reno mattresses can protect and stabilize your projects.

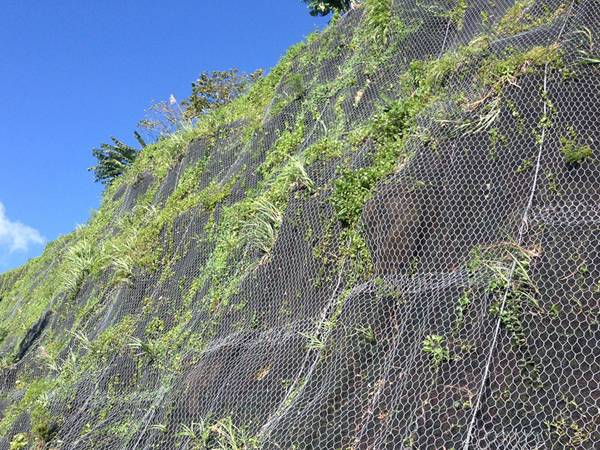

Reno mattresses, which are employed alongside gabions, are low profile cage constructions, which are filled with rocks. They play an imperative role in securing and stabilizing slopes and preventing slope erosion.

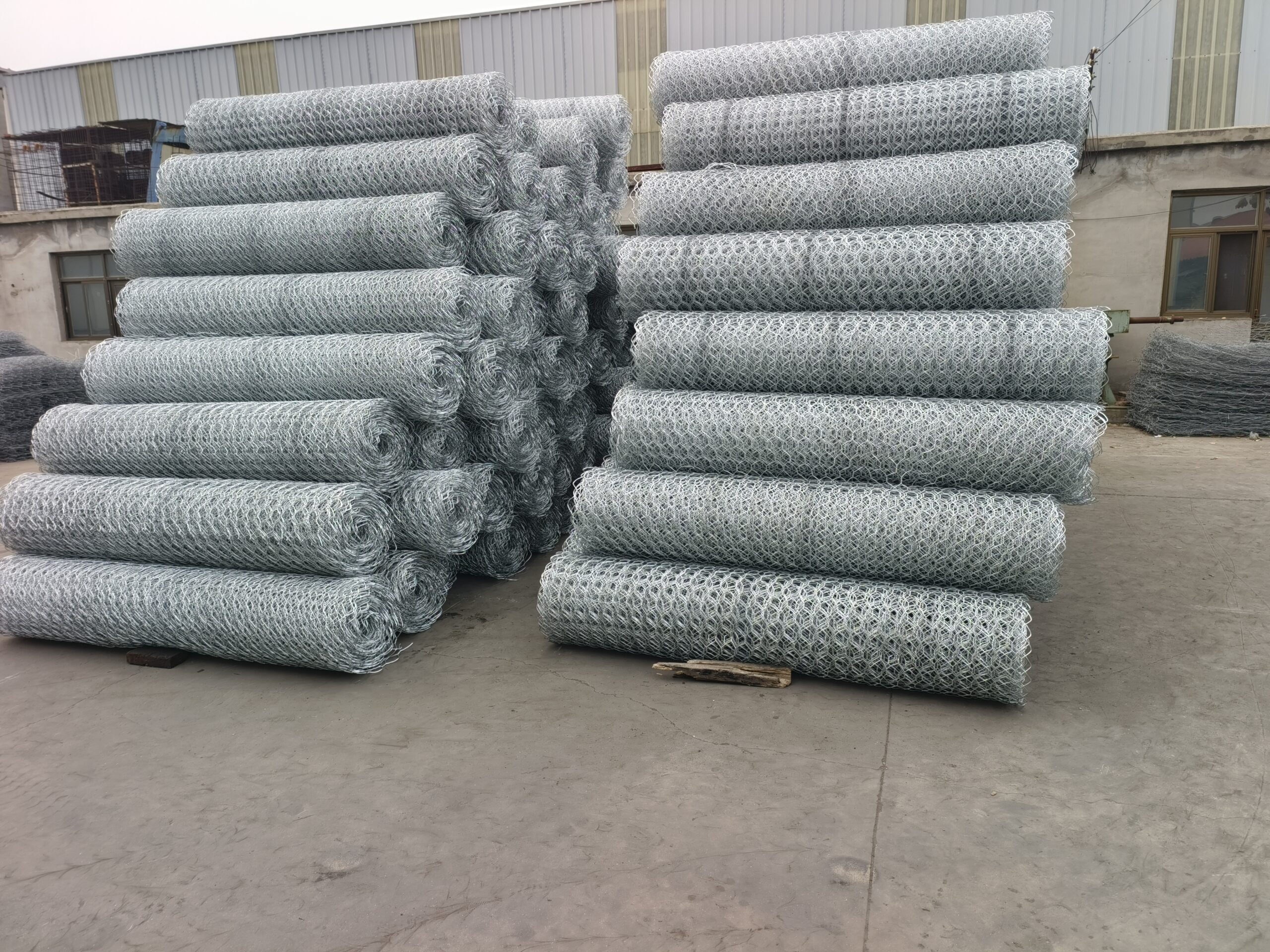

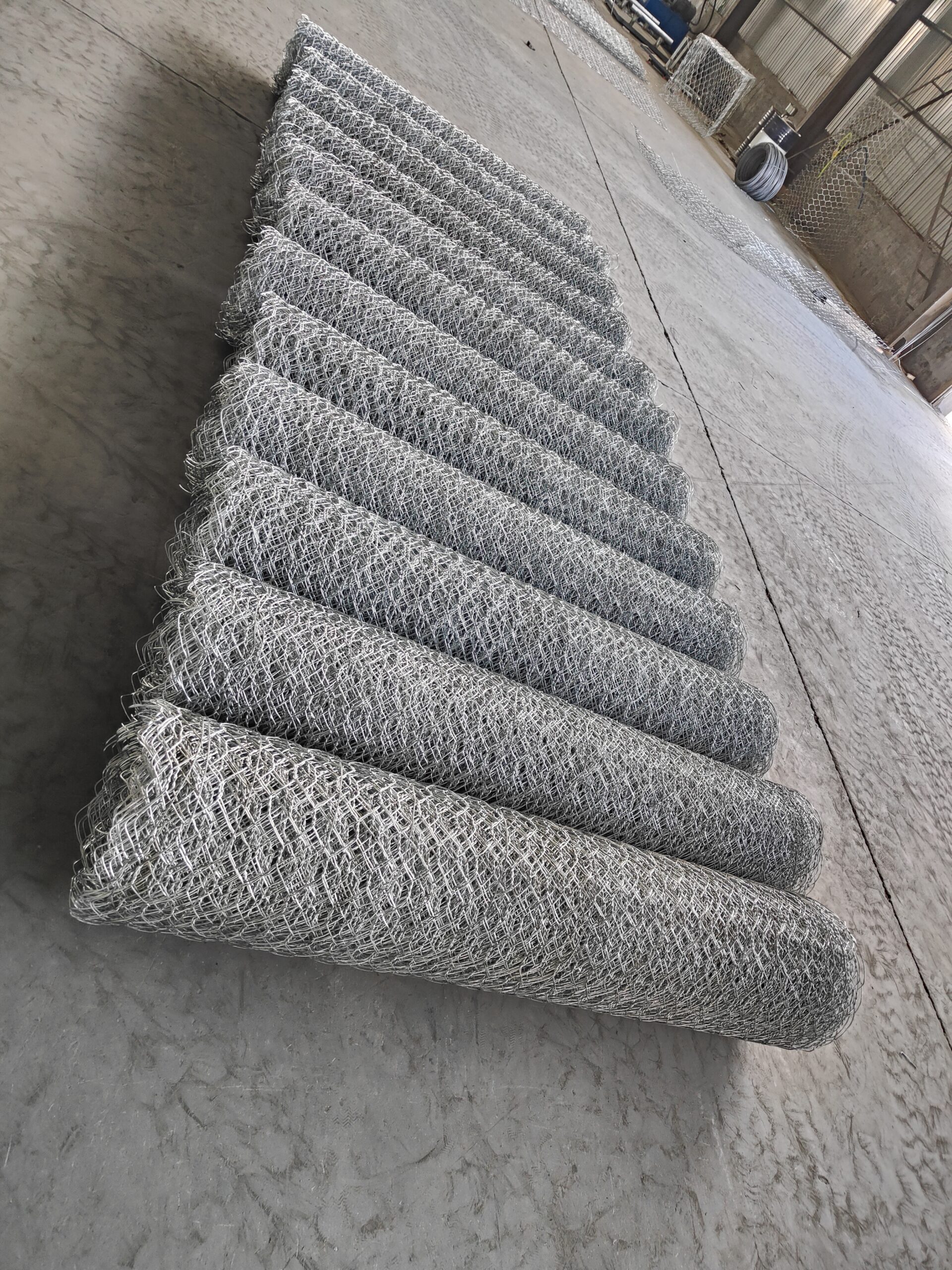

Hitech Gabion supplies gabion mesh rolls that are designed to be flexible and strong and are used in construction of retaining walls, riverbank protection, and other landscaping applications. Deployment and filling of these rolls are simple and fast, thereby making them ideal in accomplishing projects in a speedy and efficient manner.
| Specification | Value | Unit |
|---|---|---|
| Roll Width | 2.0 – 4.0 | m |
| Roll Length | 25 – 50 | m |
| Mesh Opening | 80 × 100 | mm |
| Wire Diameter | 2.7 – 4.0 | mm |
| Coating Type | Galvanized / Galfan | – |
| Zinc Coating | 245 (min) | g/m² |
| Tensile Strength | 380 – 550 | N/mm² |
| Mesh Size | Wire Diameter | Roll Width | Roll Length |
|---|---|---|---|
| 60 × 80 mm | 2.0 – 2.7 mm | 1.0 – 2.0 m | 25 – 50 m |
| 80 × 100 mm | 2.7 – 3.4 mm | 1.0 – 2.0 m | 25 – 50 m |
| 100 × 120 mm | 3.4 – 4.0 mm | 1.0 – 2.0 m | 25 – 50 m |
| 120 × 150 mm | 4.0 – 5.0 mm | 1.0 – 2.0 m | 25 – 50 m |
| Property | Standard Type | Heavy Duty Type | Unit |
|---|---|---|---|
| Mesh Opening | 80 × 100 | 100 × 120 | mm |
| Wire Diameter | 3.4 – 4.0 | 4.0 – 5.0 | mm |
| Selvedge Wire | 4.0 | 5.0 | mm |
| Lacing Wire | 2.2 | 2.4 | mm |
| Tensile Strength | 380 – 450 | 450 – 550 | N/mm² |
| Elongation | ≥ 12 | ≥ 15 | % |
Flexible and strong mesh rolls designed for retaining walls, riverbank protection, and landscaping applications. Simple and fast deployment for efficient project completion.
Developed to meet environmental challenges, offering superior erosion control solutions and stable, attractive retaining walls that blend naturally with surroundings.
For projects requiring increased durability and load-bearing capacity. Stronger construction ideal for heavy-duty applications like rockfall barriers and road construction.
Quality management system certified to international standards
Comprehensive testing reports from internationally recognized laboratory
We can provide project references to support your bidding process
Professional design and construction drawings provided for your projects
