High-Strength Anchor & Nut Systems
Premium Grade 60 steel anchor and nut assemblies engineered for critical structural applications. Manufactured to ASTM A615 standards with superior tensile strength and comprehensive quality assurance testing.
Professional Anchor & Nut Technology
Our Professional Anchor & Nut Systems are precision-engineered structural fastening components designed for heavy-duty construction and industrial applications. Featuring 32mm wire diameter construction and 5-meter standard length, these assemblies deliver exceptional load-bearing capacity and reliability.
Manufactured from premium Grade 60 steel with controlled chemical composition, each anchor and nut assembly undergoes rigorous ASTM A615 testing to ensure consistent mechanical properties. The enhanced carbon content provides superior strength characteristics while maintaining excellent ductility for structural applications.
System Components
- • High-strength 32mm diameter steel anchors
- • Precision-threaded matching nuts
- • Grade 60 steel construction throughout
- • Complete tensile and elongation testing
Performance Standards
Yield Strength: 430 MPa exceptional load capacity
Tensile Strength: 640 MPa superior structural performance
Elongation: ≥7% excellent ductility characteristics
Grade 60 specification compliance
Technical Specifications
Physical Properties
Anchor Specifications
32 mm
5 meters
Grade 60
Precision machined
Mechanical Properties
430 MPa
640 MPa
≥7%
ASTM A615
Material Composition
Chemical Analysis (%)
0.25%
0.8%
1.6%
0.06%
Quality Standards
ASTM A615 Compliant
ASTM A975-97:2003
Unmachined Specimen
Mill Certificate Provided
Test Results
| Test Parameter | Test Standard | Specification | Test Result | Status |
|---|---|---|---|---|
| Yield Strength | ASTM A615 | Grade 60 | 430 MPa | PASS |
| Tensile Strength | ASTM A615 | Minimum 640 MPa | 640 MPa | PASS |
| Elongation @ 32mm | ASTM A615 | ≥7% | ≥7% | PASS |
| Bending Characteristic | ASTM A975-97 | Grade 60 | 32mm Compliant | PASS |
Quality Assurance
All test parameters meet Grade 60 specifications. Mill Certificate No. QGCGT2021013001 provides complete traceability for 5 anchors and 5 nuts tested.
System Features & Components
Anchor Specifications
32mm diameter Grade 60 steel construction
5-meter standard length for versatile applications
Superior 640 MPa tensile strength capacity
Enhanced carbon content for strength optimization
Precision-manufactured threading for secure connection

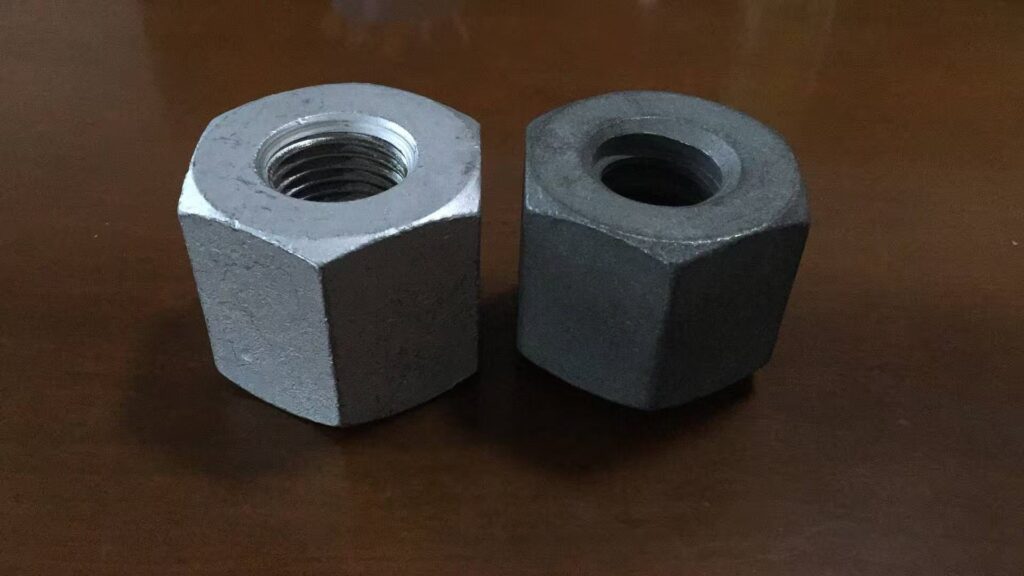

Nut Specifications
Matching 32mm thread compatibility
Grade 60 steel construction throughout
Precision threading for optimal engagement
Heavy-duty hex design for secure installation
Consistent mechanical properties across all components
Professional Applications
Foundation Anchoring
Heavy-duty foundation applications requiring superior holding power and long-term structural integrity.
Prestressed Concrete
Post-tensioning systems requiring high-strength anchoring with exceptional tensile performance.
Bridge Construction
Critical infrastructure projects demanding Grade 60 performance and ASTM compliance.
Industrial Equipment
Heavy machinery anchoring and equipment mounting requiring maximum load capacity.
Structural Connections
High-load structural connections in commercial and industrial construction projects.
Marine Applications
Marine construction and offshore applications requiring corrosion-resistant high-strength fastening.
Application-Specific Performance Benefits
High-Load Applications
430 MPa
640 MPa
32 mm
Structural Reliability
Grade 60
≥7% elongation
5 meters
Quality Assurance
ASTM A615
Complete
Mill Certificate
Key Features & Benefits
System Features
Grade 60 steel construction throughout system
32mm diameter for maximum load capacity
Precision-threaded anchor and nut compatibility
Enhanced carbon content for superior strength
ASTM A615 compliant testing and documentation
Performance Benefits
640 MPa tensile strength for critical load applications
430 MPa yield strength for structural reliability
≥7% elongation provides excellent ductility
5-meter length reduces installation complexity
Controlled chemical composition ensures consistency
Why Choose Anchor & Nut Systems
Our Professional Anchor & Nut Systems deliver exceptional performance for demanding structural applications. Grade 60 steel construction provides superior strength characteristics while maintaining the ductility required for reliable long-term performance.
Superior Strength
- • 640 MPa tensile strength capacity
- • 430 MPa yield strength performance
- • Grade 60 steel specification compliance
- • Enhanced carbon content optimization
System Integration
- • Precision-threaded anchor and nut matching
- • 32mm diameter for maximum compatibility
- • 5-meter standard length versatility
- • Consistent mechanical properties
Quality Assurance
- • ASTM A615 testing compliance
- • Complete chemical composition analysis
- • Individual batch traceability
- • Mill certificate documentation
Quality Documentation & Testing
Testing Standards
ASTM A615 Compliance
- • Tensile strength testing on unmachined specimens
- • Yield strength determination for Grade 60
- • Elongation characteristics at 32mm diameter
- • Chemical composition verification
ASTM A975-97:2003 Testing
- • Bending failure characteristic evaluation
- • Grade 60 performance verification
- • 32mm wire diameter testing confirmation
- • Structural integrity assessment
Quality Assurance Process
Material Selection
Grade 60 steel selection with enhanced carbon content for superior strength characteristics.
Precision Manufacturing
32mm wire diameter anchors and matching nuts manufactured to precise threading specifications.
Comprehensive Testing
Individual testing of 5 anchors and 5 nuts according to ASTM standards with full documentation.
Documentation
Complete mill certificates with test results, chemical analysis, and batch traceability information.
Complete Documentation Package
Every anchor and nut system shipment includes comprehensive quality documentation to support your project requirements and regulatory compliance needs.
-
Mill Certificate with unique batch number
-
Individual component test results
-
Chemical composition analysis
-
Grade 60 compliance verification
