Advanced HDPE three-dimensional geocomposite technology for superior erosion control, vegetation establishment, and soil stabilization. Engineered for challenging earthwork projects requiring long-term environmental protection.

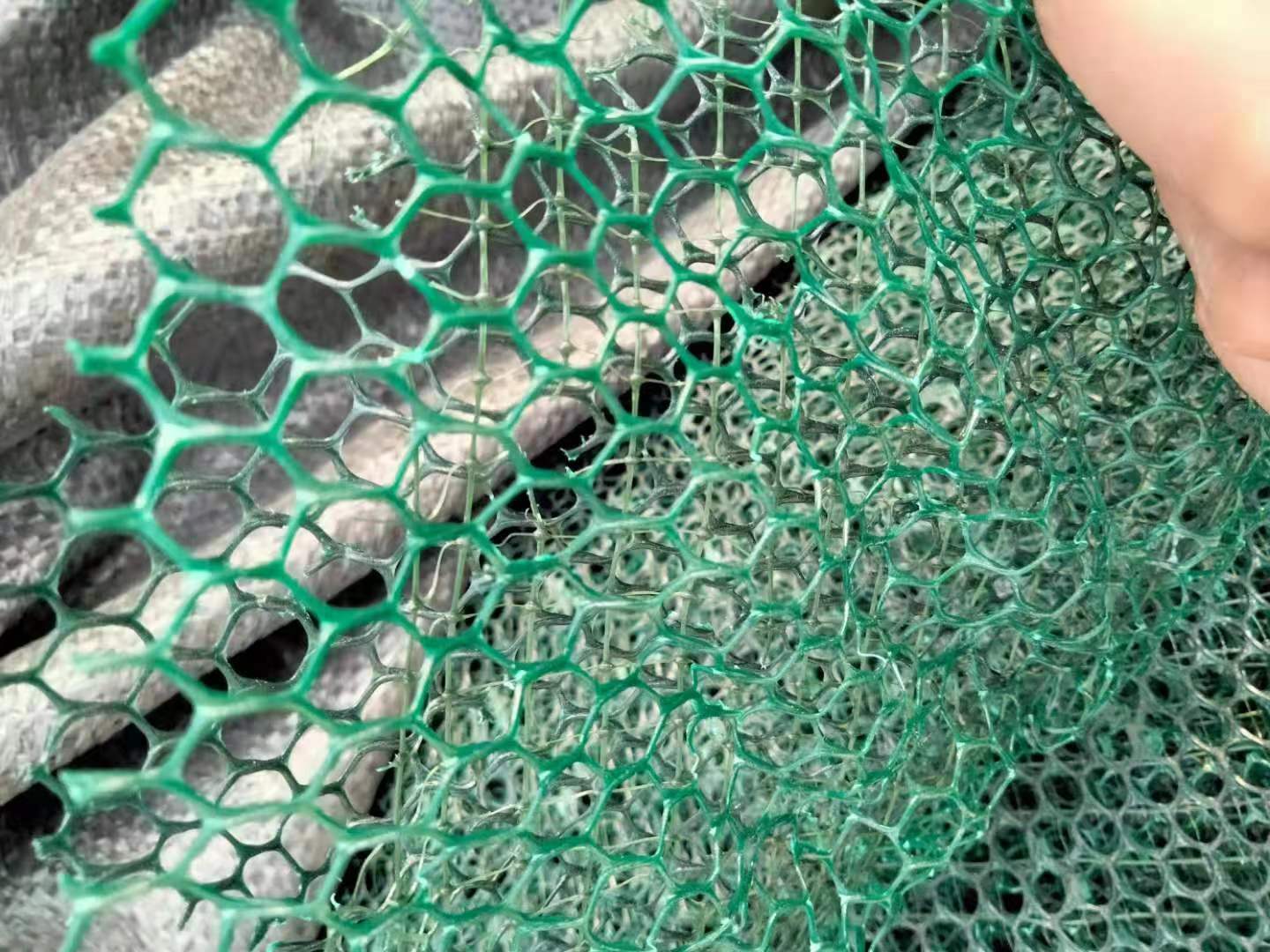

Our Professional Three-Dimensional Geomat represents cutting-edge geosynthetic engineering, featuring a robust three-dimensional High-Density Polyethylene (HDPE) structure with an advanced open matrix design. This innovative system functions as a protective, reinforcing, and integrated intermediate layer between natural vegetation and soil substrate.
The unique three-dimensional architecture enables comprehensive root system development while providing secure soil anchoring. With 95% open space available for soil, aggregate, and root penetration, this system creates an optimal environment for sustainable vegetation establishment and long-term slope protection.
Three-dimensional structure provides thermal insulation, protecting seeds and young plants from temperature fluctuations while maintaining optimal germination conditions.
Open matrix design captures and holds moisture for extended periods, ensuring consistent water availability during critical germination and establishment phases.
Flexible structure allows unrestricted root penetration up to 30-40cm depth, creating a robust root-soil-mat composite system for long-term stability.
Mature vegetation combines with the geomat matrix to form a permanent, self-reinforcing green protective layer resistant to erosion and surface disturbance.
| Property | Unit | EM2 | EM3 | EM4 | EM5 |
|---|---|---|---|---|---|
| Mass Per Unit Area | g/m² | ≥220 | ≥260 | ≥350 | ≥430 |
| Thickness | mm | ≥10 | ≥12 | ≥14 | ≥16 |
| Width Deviation | m | ±0.1 | ±0.1 | ±0.1 | ±0.1 |
| Length Deviation | m | ±0.1 | ±0.1 | ±0.1 | ±0.1 |
| Longitudinal Tensile Strength | kN/m | ≥0.8 | ≥1.4 | ≥2.0 | ≥3.2 |
| Transverse Tensile Strength | kN/m | ≥0.8 | ≥1.4 | ≥2.0 | ≥3.2 |
The EM5 grade represents our highest performance geomat specification, engineered for the most demanding earthwork applications requiring maximum durability and vegetation support.
Superior protection for steep slopes and embankments. Three-dimensional structure provides immediate erosion protection while vegetation establishes.
Comprehensive soil stabilization for large-scale earthwork and infrastructure development projects requiring long-term environmental protection.
Effective aggregate consolidation and stabilization. Open matrix design accommodates gravel placement while providing structural reinforcement.
Advanced soil stabilization through integrated composite action. Creates permanent soil-vegetation-matrix system for superior performance.
Excellent drainage characteristics combined with vegetation support. Ideal for areas requiring both water management and erosion control.
Sustainable landscaping and ecological restoration projects. Supports biodiversity development and long-term environmental enhancement.
Our Professional Three-Dimensional Geomat systems represent the latest advancement in erosion control and vegetation establishment technology. The innovative HDPE matrix design provides unmatched performance for challenging earthwork applications requiring both immediate protection and long-term environmental sustainability.
Prepare surface by removing debris and loose material. Create smooth, stable surface that conforms to design grades and specifications.
Unroll geomat carefully, maintaining consistent contact with prepared surface. Ensure proper overlap at joints and secure anchoring system.
Place topsoil, seed, and any required amendments into geomat matrix. Ensure adequate coverage while maintaining open structure integrity.
Provide appropriate irrigation and maintenance during establishment period. Monitor vegetation development and provide supplemental care as needed.
