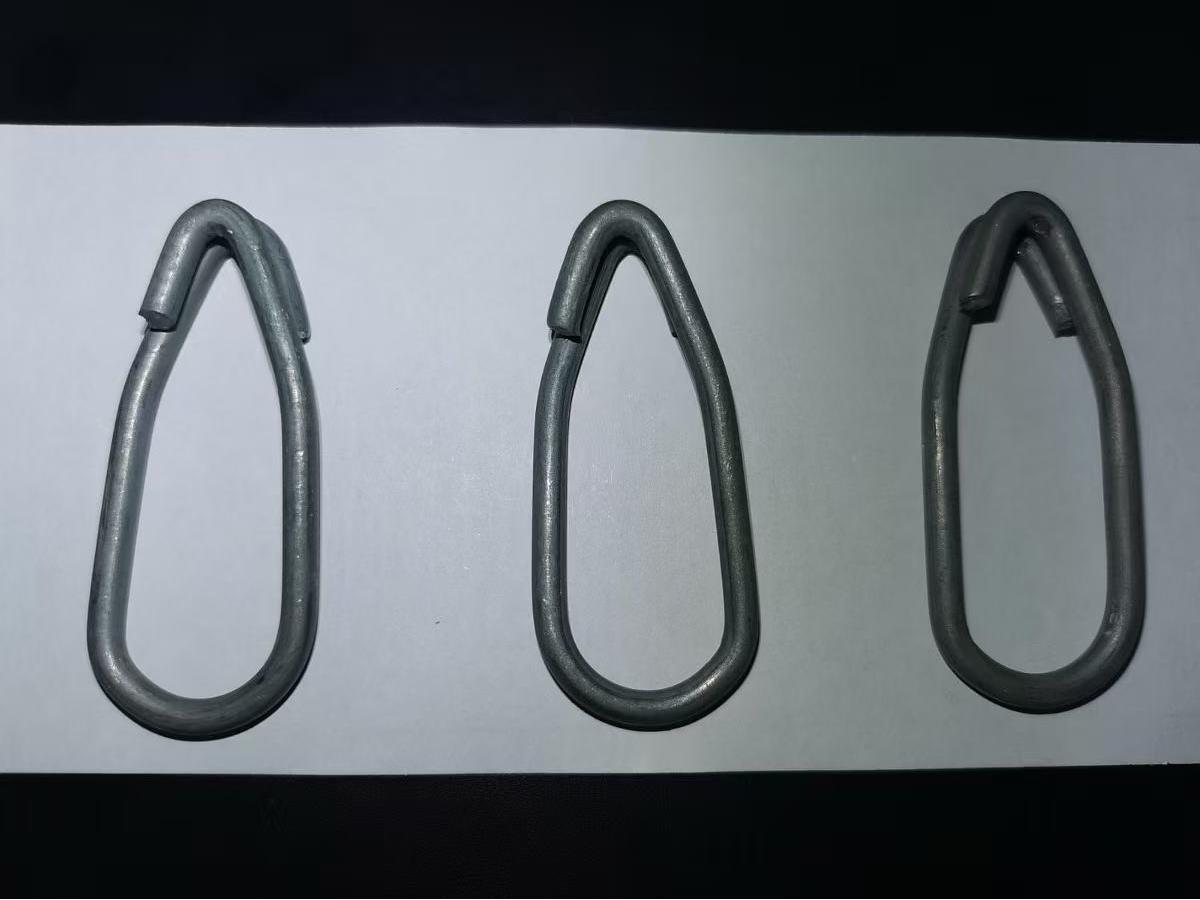

Professional Connection Clips
High-tensile spring steel wire connection clips engineered for secure wire mesh joining applications. Advanced corrosion protection and precision manufacturing for critical structural connections.
Professional Connection Clip Technology
Our Professional Connection Clips are precision-manufactured fastening components designed for secure and reliable wire mesh connections. Featuring high-tensile spring steel wire construction with 4.0mm diameter, these clips deliver exceptional tensile strength and durability.
Engineered with advanced corrosion protection coating and optimized dimensions, each connection clip provides superior performance in demanding environmental conditions. The lightweight yet strong design ensures easy installation while maintaining structural integrity.
Key Specifications
- • 4.0mm high-tensile spring steel wire diameter
- • 21mm x 60mm precision dimensions
- • ≥1770 N/mm² tensile strength performance
- • Advanced corrosion protection coating
Performance Standards
Tensile Strength: ≥1770 N/mm² exceptional performance
Wire Tensile Force: ≥22 kN superior load capacity
Weight: 15.7g lightweight design
Coating: ≥150 g/m² corrosion protection
Technical Specifications
Physical Properties
Dimensional Specifications
60 ± 2 mm
21 ± 1.2 mm
4.0 mm
15.7 g
Mechanical Properties
≥1770 N/mm²
≥22 kN
High-tensile spring steel
Precision formed wire
Corrosion Protection
Advanced Coating System
Ultra-coating technology
94.5%
5%
0.5%
Coating Performance
≥150 g/m²
Superior corrosion resistance
All-weather performance
Long-term protection
Application Specifications
| Mesh Type | Clips per Diamond | Clips per m² | Application |
|---|---|---|---|
| G45/2 Mesh | 1 piece | 10.5 pcs/m² | Sideways connection |
| G65/3 Mesh | 1 piece | 7 pcs/m² | Sideways connection |
| G65/4 Mesh | 2 pieces | 14.4 pcs/m² | Sideways connection |
Optimized Connection Performance
Clip quantities optimized for different mesh types to ensure secure connections while maintaining material efficiency and installation effectiveness.
Professional Applications
Wire Mesh Connections
Secure joining of high-tensile steel wire mesh sections for continuous protective barriers and structural reinforcement.
Slope Protection
Critical connections for slope stabilization systems requiring reliable mesh joining in challenging environmental conditions.
Rockfall Protection
Essential components for rockfall barrier systems where secure mesh connections are critical for protection effectiveness.
Civil Engineering
Infrastructure projects requiring durable and reliable wire mesh connections for long-term structural performance.
Erosion Control
Secure mesh joining for erosion control applications where connection integrity is essential for system effectiveness.
Mining Applications
Heavy-duty mining applications requiring robust mesh connections capable of withstanding extreme operational conditions.
Key Features & Benefits
Design Features
High-tensile spring steel wire construction
Precision 4.0mm wire diameter for optimal strength
Optimized 21mm x 60mm dimensions
Advanced ultra-coating corrosion protection
Lightweight 15.7g design for easy installation
Performance Benefits
≥1770 N/mm² tensile strength for critical loads
≥22 kN wire tensile force capacity
Superior corrosion resistance in harsh environments
Multiple mesh compatibility options
Long-term structural reliability
Why Choose Professional Connection Clips
Our Professional Connection Clips represent advanced engineering in wire mesh connection technology. The combination of high-tensile spring steel construction and advanced corrosion protection ensures reliable performance in the most demanding applications.
Superior Strength
- • ≥1770 N/mm² tensile strength performance
- • ≥22 kN wire tensile force capacity
- • High-tensile spring steel construction
- • Optimized 4.0mm wire diameter
Advanced Protection
- • Ultra-coating corrosion protection
- • 94.5% Zn / 5% Al composition
- • ≥150 g/m² coating weight
- • All-weather performance capability
Installation Efficiency
- • Lightweight 15.7g design
- • Precision dimensional tolerances
- • Multiple mesh type compatibility
- • Optimized clip quantities per application
Installation Guidelines & Specifications
Installation Specifications
G45/2 and G65/3 Mesh
- • 1 clip per diamond opening connection
- • Sideways roll connection application
- • 10.5 pcs/m² for G45/2 mesh systems
- • 7 pcs/m² for G65/3 mesh systems
G65/4 Mesh Systems
- • 2 clips per diamond opening connection
- • Enhanced connection strength
- • 14.4 pcs/m² for complete coverage
- • Sideways roll connection method
Quality Assurance
Material Selection
High-tensile spring steel wire selected for optimal strength and flexibility characteristics.
Precision Manufacturing
Advanced forming processes ensure consistent dimensions and mechanical properties.
Corrosion Protection
Advanced ultra-coating application provides superior environmental protection.
Performance Testing
Comprehensive testing ensures tensile strength and durability meet specification requirements.
Professional Installation Support
Our connection clips are designed for reliable installation across various mesh types and environmental conditions, ensuring optimal performance and longevity.
-
Precision dimensional tolerances
-
Multiple mesh compatibility
-
Superior corrosion protection
-
Long-term performance reliability
