Advanced three-dimensional geocomposite reinforced with double twist steel wire mesh, providing superior tensile mechanical strength and erosion protection for critical infrastructure applications.

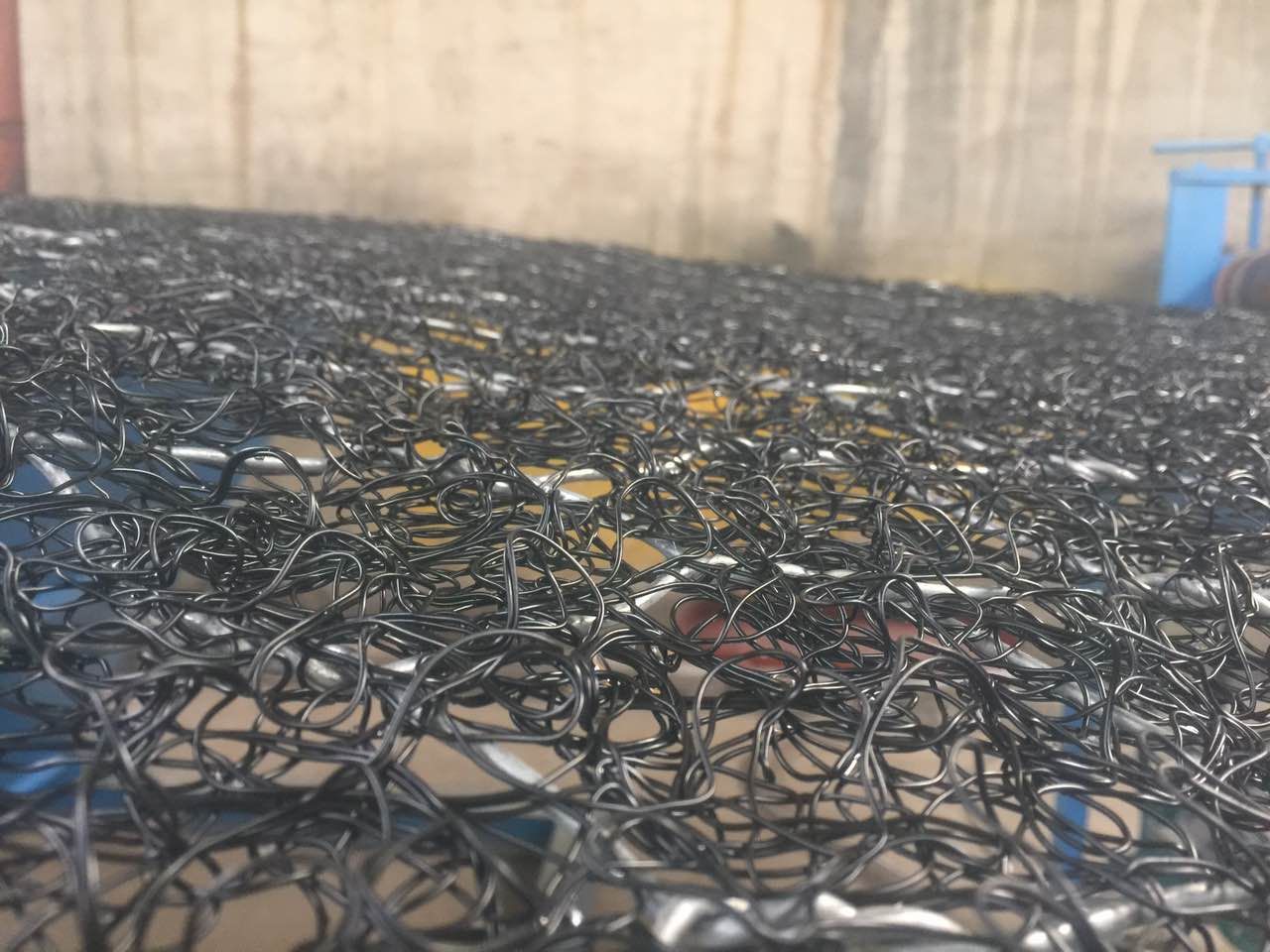

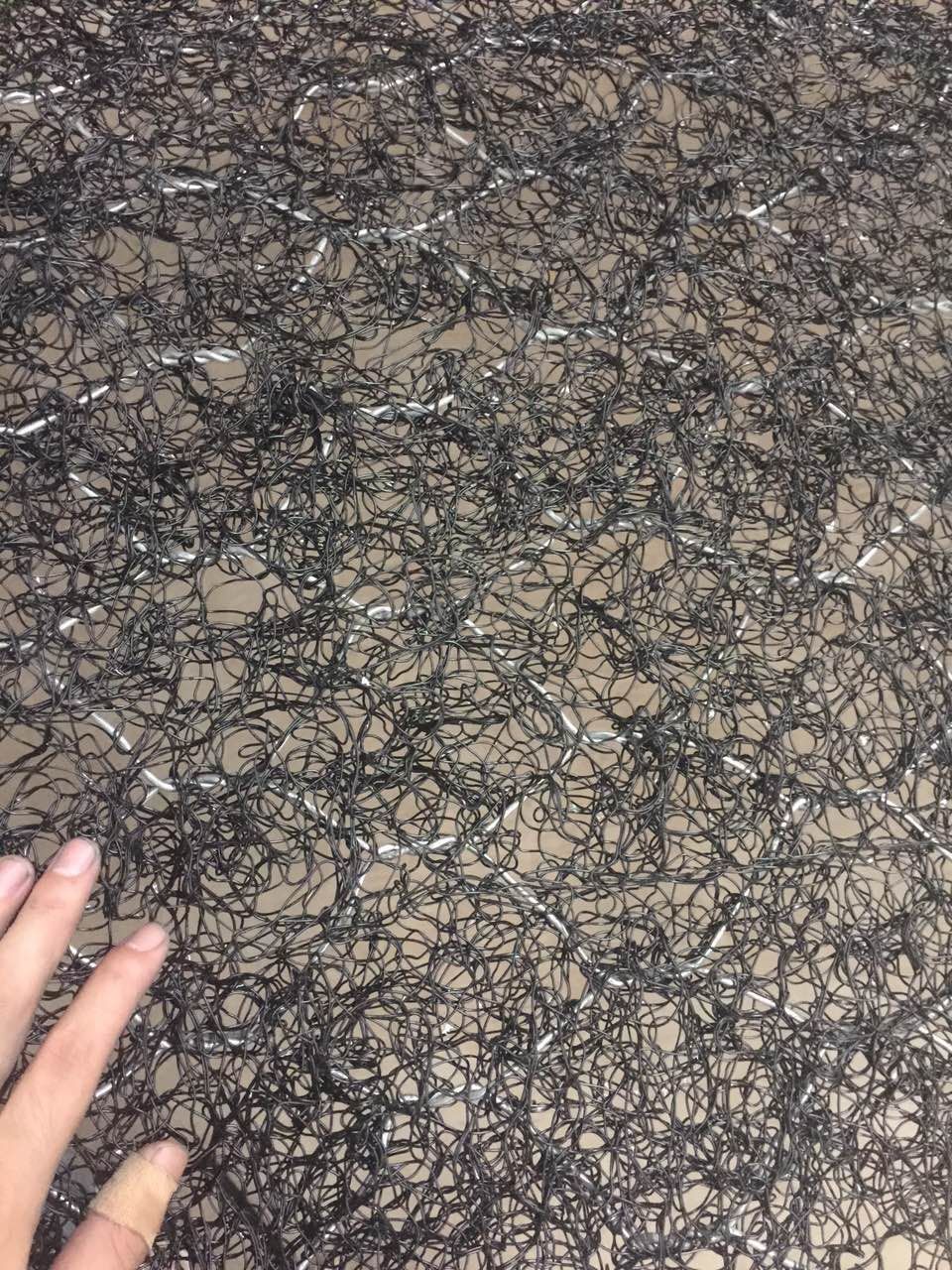

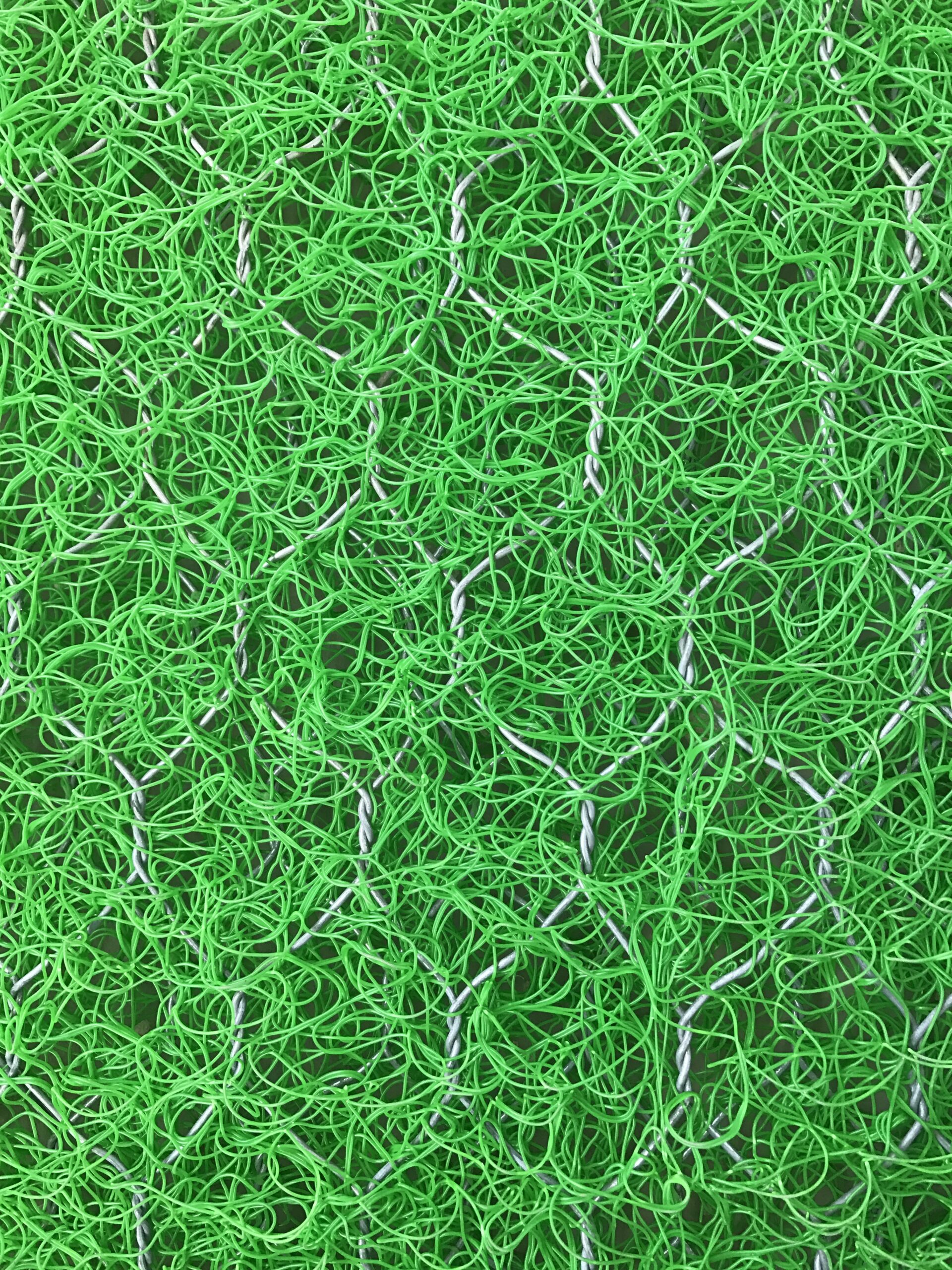

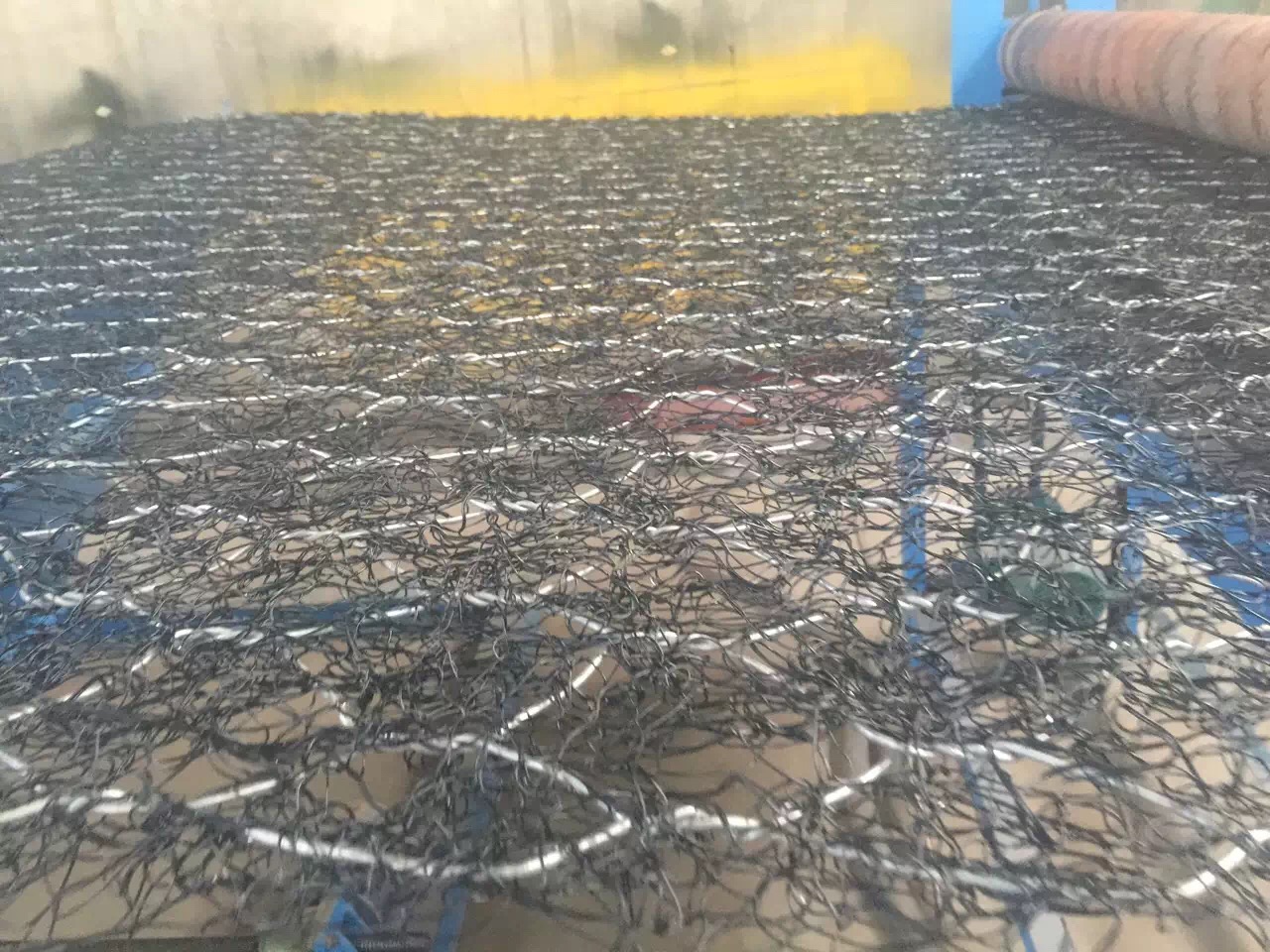

Gabion Roll with Plastic R1 is a reinforced geomat made from a polymeric three-dimensional matrix extruded onto a double twisted steel wire woven mesh. The reinforcing hexagonal steel wire mesh has mechanical characteristics exceeding those in EN 10223-3.
The wire is protected with (Zn95%-AI5%) galvanising in accordance with EN 10244-2, Class A, ensuring long-term durability and corrosion resistance in various environmental conditions.
All products meet international standards and undergo rigorous quality control testing.
Discover why our Gabion Roll solutions are trusted by engineers worldwide
Effectively prevents soil erosion on slopes, riverbanks, and embankments by stabilizing the surface and protecting against water damage.
Reinforces the ground structure, reducing soil displacement and significantly increasing load-bearing capacity for heavy infrastructure.
Creates an optimal environment for plants to establish root systems, enhancing natural stabilization and environmental integration.
Manufactured from high-quality synthetic materials with superior resistance to environmental factors, ensuring decades of reliable performance.
Significantly reduces long-term maintenance costs by minimizing soil erosion, structural damage, and the need for frequent repairs.
Supports sustainable land management practices by promoting vegetation growth, reducing soil loss, and protecting natural ecosystems.
Trusted solutions across multiple sectors and industries worldwide
Land rehabilitation and soil protection
Infrastructure reinforcement and sports facilities
River control and coastal protection
Flood control and emergency stabilization
Ecosystem preservation and restoration
Site rehabilitation and infrastructure support
Road and railway infrastructure
City development and green spaces
Detailed technical data and performance characteristics
| Product Type | R1 6822GN | R1 8127GN | R1 6822G0 | R1 8127G0 |
|---|---|---|---|---|
| Geomat Polymer | POLYPROPYLENE | |||
| Mass per unit area (±10%) | 450 g/m² | |||
| Melting point | 150°C | |||
| Polymer Density | 900 kg/m³ | |||
| UV Resistance | STABILIZED | |||
| Reinforcement Type | Double twisted woven steel wire mesh heavily GalMac coated | Double twisted woven steel wire mesh with additional PoliMac coating | ||
| Mesh type | 6×8 | 8×10 | 6×8 | 8×10 |
| Wire diameter (int./ext.) | 2.20 mm | 2.70 mm | 2.20/3.20 mm | 2.70/3.70 mm |
| Nominal Polimac® coating thickness | not present | not present | 0.5 mm | 0.5 mm |
| Nominal longitudinal resistance | 40 ± 3 kN/m | 55 ± 5 kN/m | 40 ± 3 kN/m | 55 ± 5 kN/m |
| Mass per unit area (composite) | 1630 g/m² | 1850 g/m² | 1920 g/m² | 2130 g/m² |
| Voids index | >90% | |||
| Nominal thickness | 12 mm | |||
| Geomat colour | BLACK/GREEN | |||
| Roll dimensions | 25m × 2m (50 m²) | |||
Professional installation procedures for optimal performance
Carefully inspect the quality of the Gabion Roll with Plastic to ensure it is free from damage and contamination before installation.
Ensure the construction site is level, dry, and free of waterlogging. Avoid construction under adverse weather conditions.
Level and compact the foundation, removing any surface protrusions to ensure a flat foundation surface.
Lay according to design drawings, ensuring the laying direction aligns with the main load-bearing direction.
Use proper U-shaped nails with 1-meter spacing in a plum blossom pattern for secure anchoring.
Ensure connections are secure with strength not less than the design tensile strength.
Tighten and smooth the material, ensuring close adherence to avoid wrinkles and distortions.
When laying multiple layers, alternate upper and lower seams with minimum 0.5-meter offset distance.
Lay a 5cm thick layer of medium to coarse sand between the material and gravel sub-layers.
During construction, avoid damaging the coating and minimize porosity.
When cushion layer exceeds 0.5 meters, heavy compaction machinery can be used for dense material compaction.
Adhere to safety operation procedures to ensure construction personnel safety.
Maintain detailed records of material usage, construction steps, and inspection results.
Conduct regular inspections and maintenance to ensure long-term stability and service life.
By following these construction guidelines, the quality and effectiveness of the Gabion Roll with Plastic installation can be effectively guaranteed, extending its service life and ensuring optimal performance for decades.
